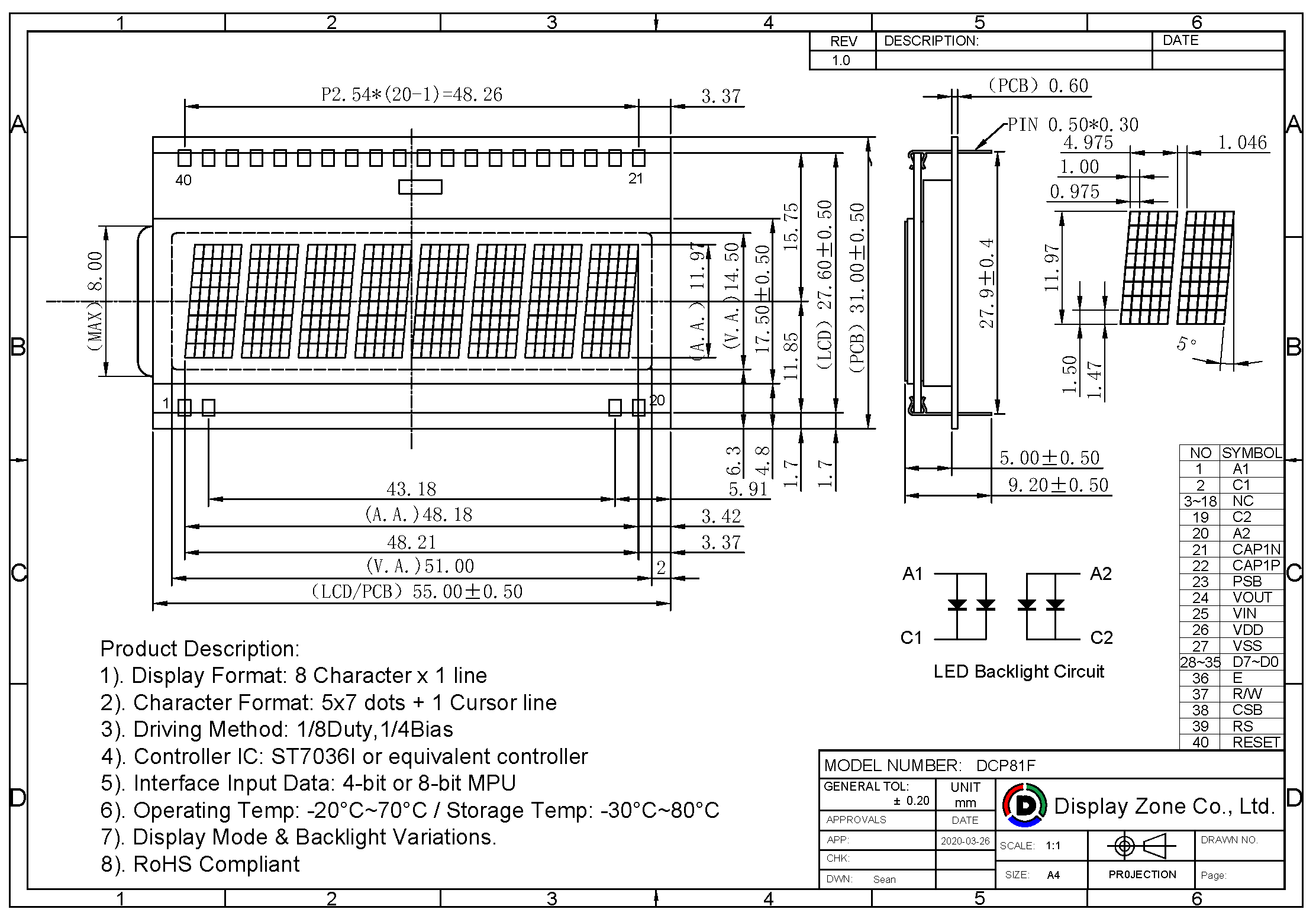

DCP81F
FEATURES
- Type：Character
- Display format: 8x1Character
- Controller IC: ST7036I or equivalent)
- Duty cycle: 1/8
- 5×8 dots includes cursor
- +3.3V power supply
- LED can be driven by in pinA1,pinC1,pinC2,pinA2
- PDF DOWNLOAD
- Description
- Inquiry
This COG 8×1 character LCD module is FSTN type, gray background, without backlight. Viewing angle is 6:00 o’clock. Operating temp. range is from -20 to +85 centigrade, storage temp. range is from -30 to +90 centigrade, and the VDD is 3.3V.
