DCP162I
FEATURES
- Type：Character
- Display format: 16×2 Character
- Controller IC: ST7066U(or equivalent)
- Duty cycle: 1/16
- 5×8 dots includes cursor
- +5.0V power supply (also available for +3.3V)
- LED can be driven by in pin1,pin3
- PDF DOWNLOAD
- Description
- Inquiry

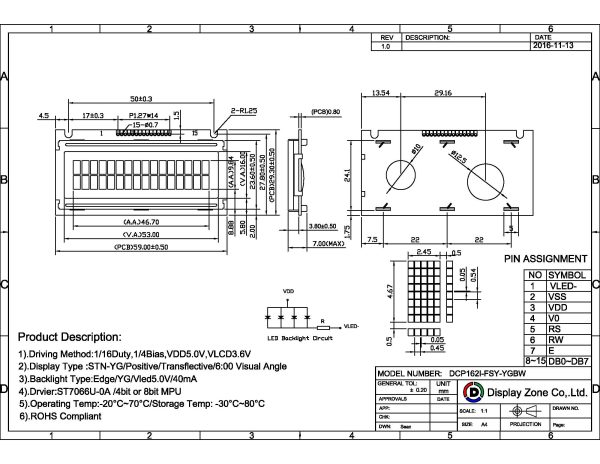

The Display Zone model DCP162I is a 16×2 character LCD with a yellow/green display and backlight.This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This DCP162I display has an optimal view of 6:00 and operates at 5.0V/3.3V supply voltage.
