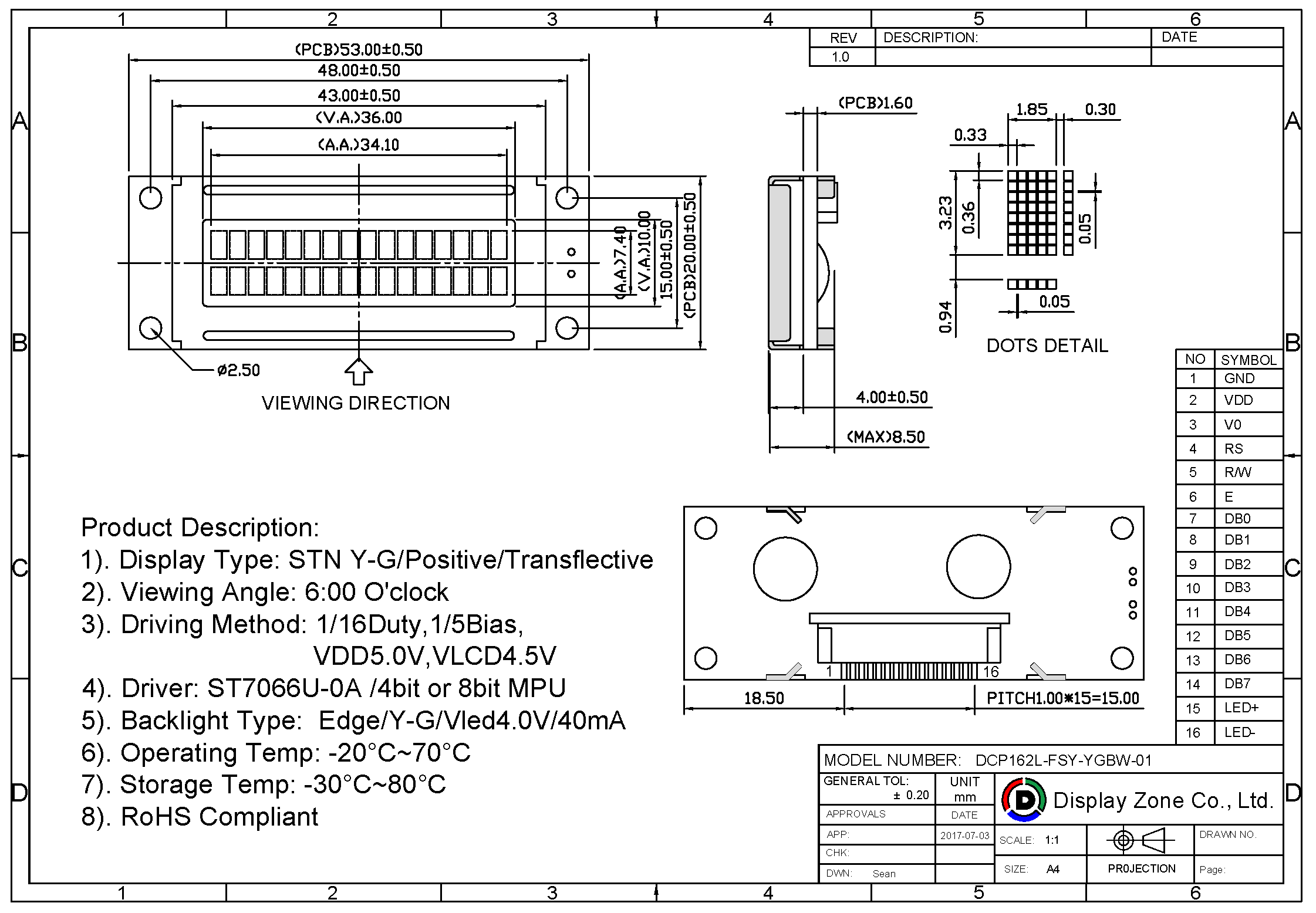

DCP162L
FEATURES
- Type：Character
- Display format: 16×2 Character
- Controller IC: ST7066U(or equivalent)
- Duty cycle: 1/16
- 5×8 dots includes cursor
- +5.0V power supply (also available for +3.3V)
- PDF DOWNLOAD
- Description
- Inquiry
The DCP162L is a 16×2 character display with transflective LCD technology that shows dark pixels on a yellow/green background, offering excellent visibility in both ambient light conditions and with the assistance of the side green LED backlight. With a wide operating temperature range of -20 to 70 degrees Celsius, this display is suitable for indoor and outdoor environments. It comes with a built-in ST7066U controller and flex cable, providing a 6:00 optimal view. The display supports both 4-bit and 8-bit parallel MPU interfaces and operates at a 5.0V supply voltage. Additionally, it is RoHS compliant, adhering to environmentally friendly standards.
