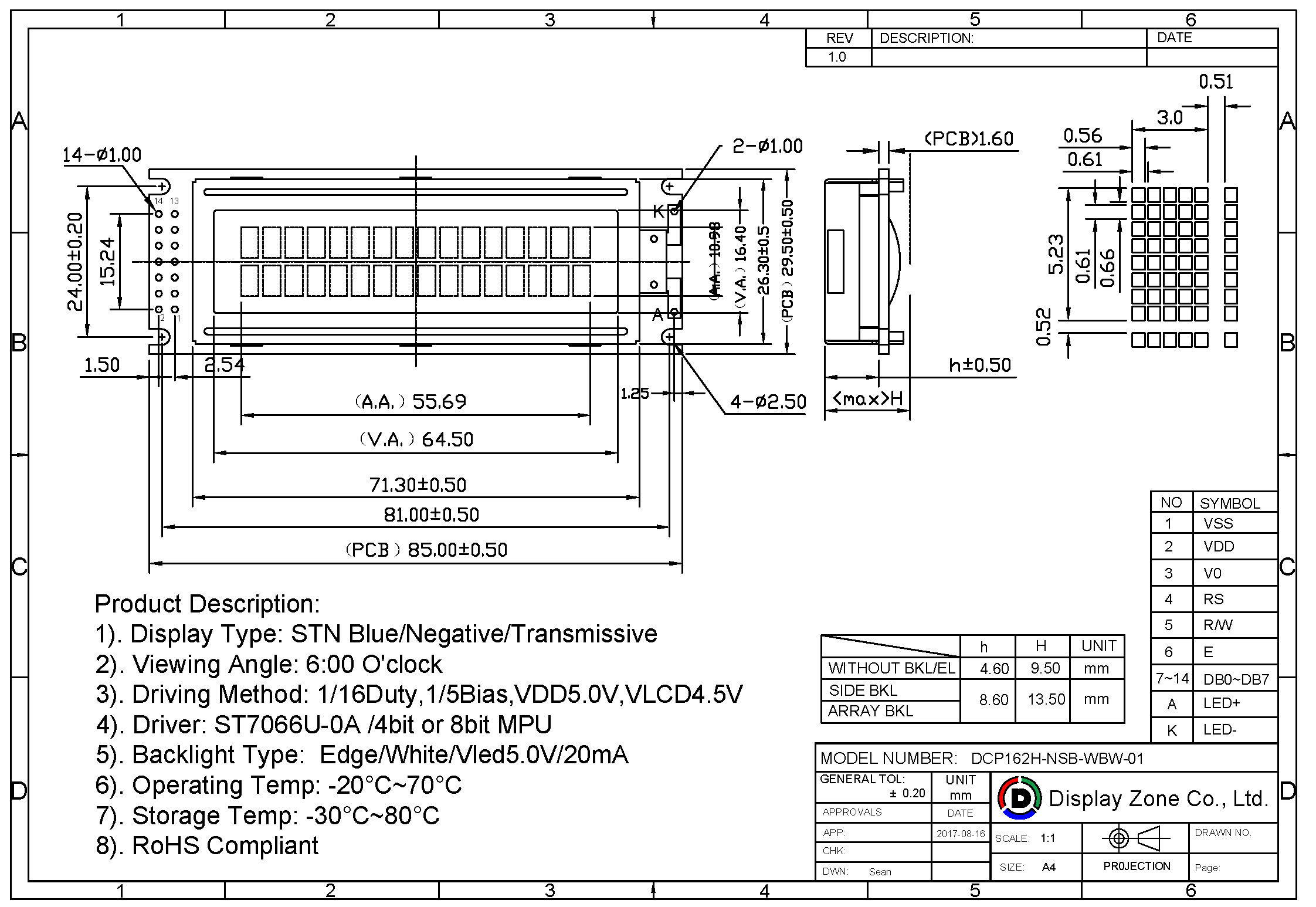

DCP162H
FEATURES
- Type：Character
- Display format: 16×2 Character
- Controller IC: ST7066U(or equivalent)
- Duty cycle: 1/16
- 5×8 dots includes cursor
- +5.0V power supply (also available for +3.3V)
- LED can be driven by in pin1,pin2
- PDF DOWNLOAD
- Description
- Inquiry
Display Zone 16×2 LCD display shows up to 32 characters as two rows, each with sixteen characters of white pixels on a blue background. This transmissive STN negative Liquid Crystal Display requires a backlight for visibility while offering an optimal 6:00 view. This DCP162H display has a wide operating temperature range from -20 to 70 degrees Celsius, a ST7066U controller, operates at 5.0V/3.3V supply voltage, and is compatible with Arduino and other popular development boards.
