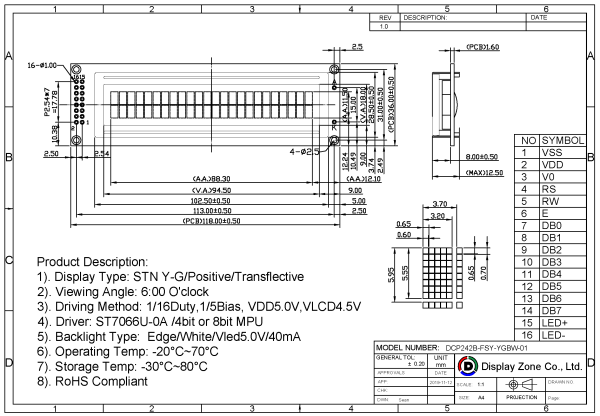

DCP242B
FEATURES
- Type：Character
- Display format: 24x2Character
- Controller IC: ST7066U(or equivalent)
- Duty cycle: 1/16
- 5×8 dots includes cursor
- +5.0V power supply (also available for +3.3V)
- LED can be driven by in pin1,pin2,pin15,pin16
- PDF DOWNLOAD
- Description
- Inquiry
DCP242B is 24 characters wide, 2 rows character lcd module,ST7066U controller ,6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the ST7066U datasheet for the full character set. It’s optional for pin header connection, 5V or 3.3V power supply.
