FEATURES

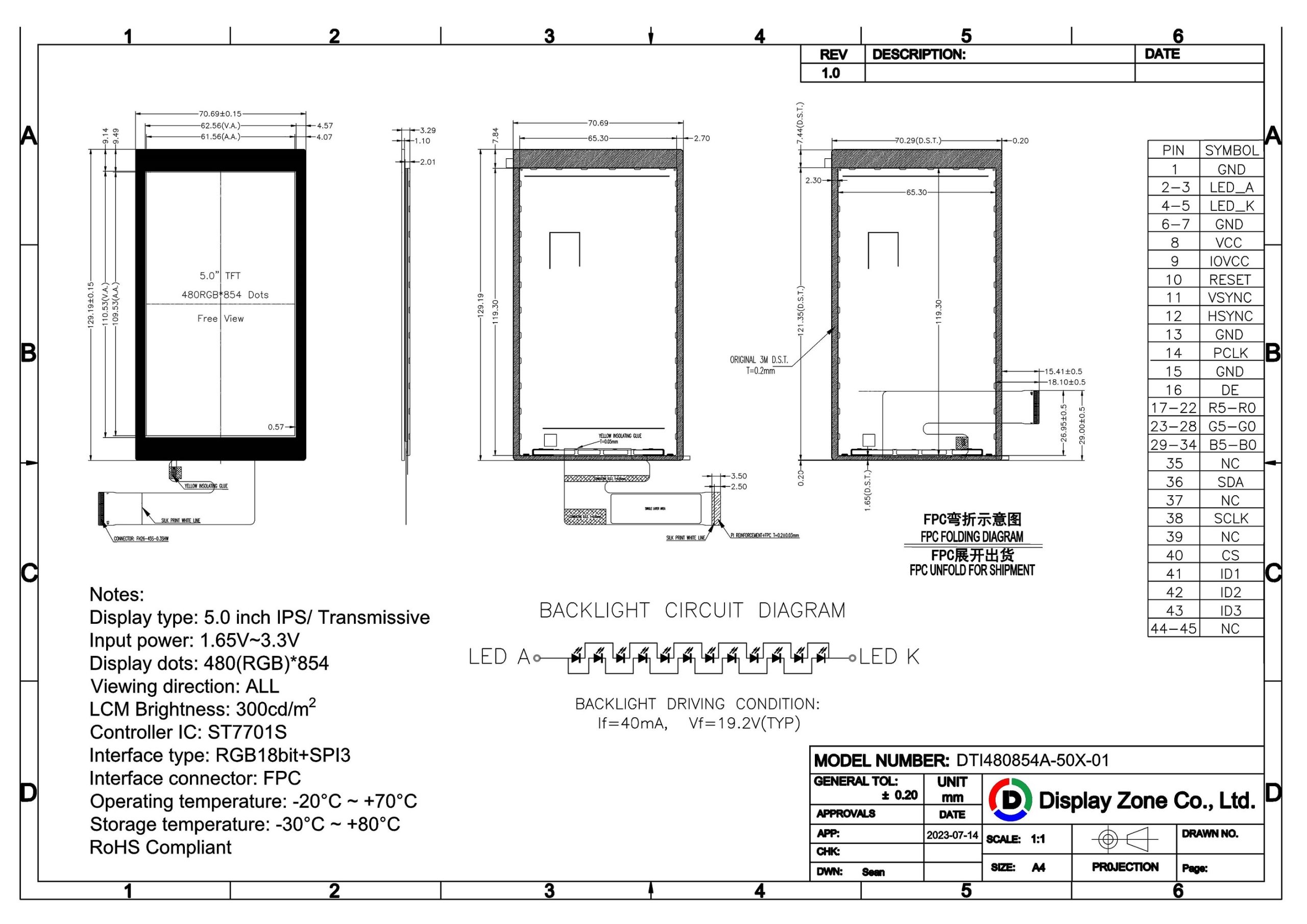

This 480×854 resolution TFT LCD is a standard display, with 18-bit RGB and SPI3 interface and all view direction. It has a built-in ST7701S controller, FPC ZIF connection, and it’s RoHS compliant. Customers can customize different connections and cover glass.
FEATURES
Type：TFT
Size: 1.22”Diagonal | 240×240 Pixels
Display Type: IPS
Interface: 4-wire SPI
Driver IC: ST7789T3
PDF DOWNLOAD
FEATURES
> Type: TFT
> Size:3.2”Diagonal | 240×320 Pixels
> Display Type:TN
> Interface:SPI,MCU
> Driver IC: ST7789V2
> Resources:Specifications
> Initial code:3.2” BOE+ST7789V2
FEATURES
Type：TFT
Size: 1.83”Diagonal | 240×284 Pixels
Display Type: IPS
Interface: 4-wire SPI
Driver IC: NV3030B
PDF DOWNLOAD
> FEATURES
> Type: TFT
> Size:2.76”Round | 480×480 Pixels
> Display Type:IPS
> Interface:SPI,RGB
> Driver IC:ST7701S
> Resources:Specifications
> Initial code:2.76” BOE+ST7701S
FEATURES
Type：TFT
Size: 1.47” | 172×320 Pixels
Display Type: IPS
Interface: 8-bit 8080 MCU
Driver IC: NV3030B
PDF DOWNLOAD
FEATURES
> Type: TFT
> Size:3.13”Diagonal | 376×960 Pixels
> Display Type:IPS
> Interface:MIPI
> Driver IC:GC9503CV
> Resources:Specifications
> Initial code:3.13”IPS BOE+GC9503CV
FEATURES
Type：TFT
Size: 1.54”Diagonal | 240×240 Pixels
Display Type: IPS
Interface: 4-wire SPI
Driver IC: GC9307C
PDF DOWNLOAD
FEATURES
Type：TFT
Size: 1.6” Round| 400×400 Pixels
Display Type: IPS
Interface: QSPI
Driver IC: ST77903
PDF DOWNLOAD
