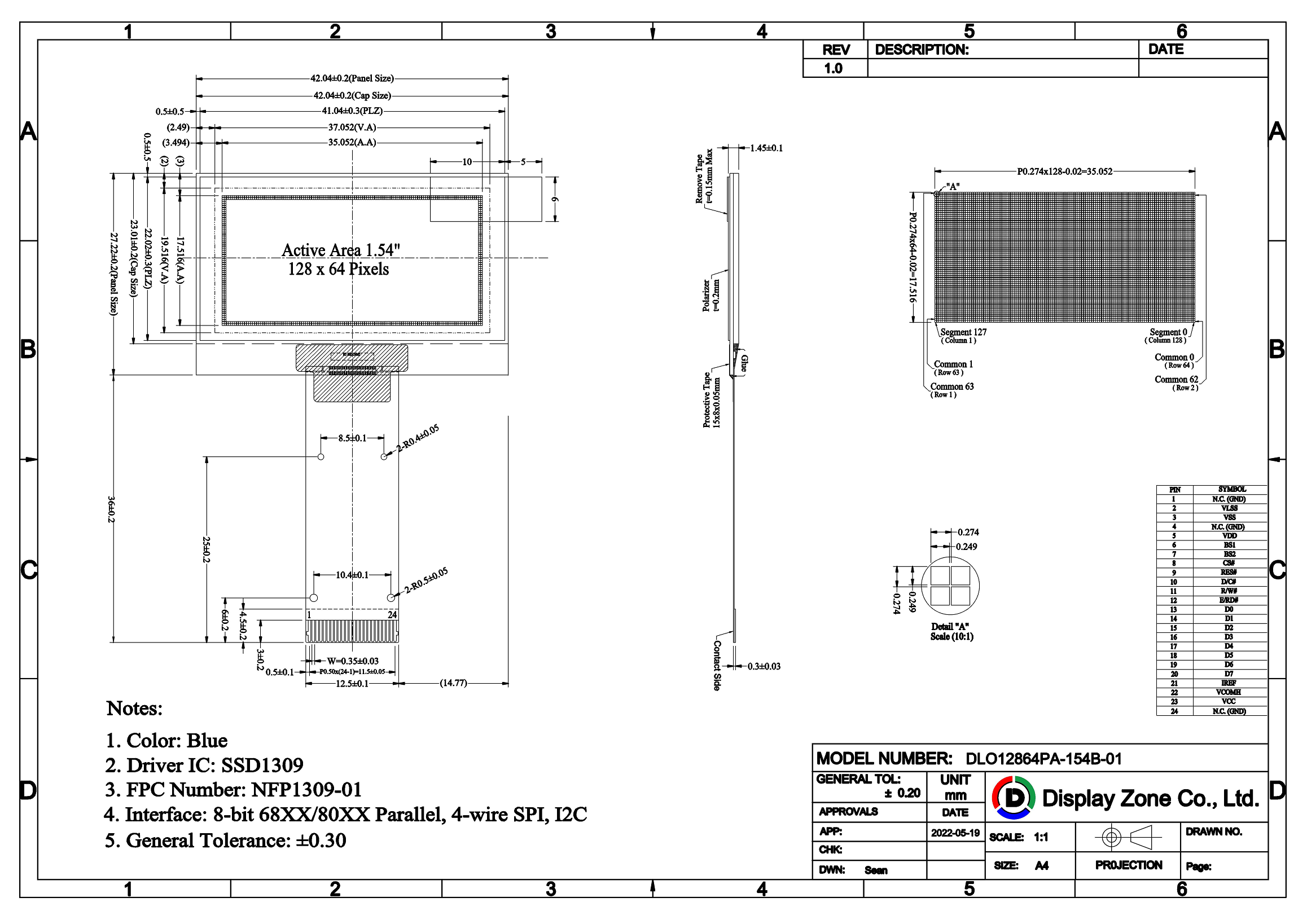

DLO12864PA-154B-01
FEATURES
- Type：Passive graphic
- Size: 1.50”Diagonal | 128×64 Pixels
- Display Color: Monochrome (Blue)
- Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I²C
- Driver IC: SSD1309
- PDF DOWNLOAD
- Description
- Inquiry

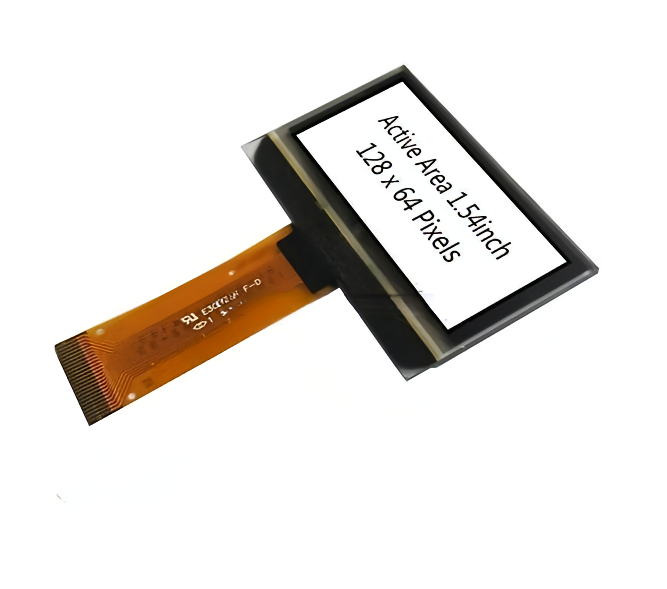

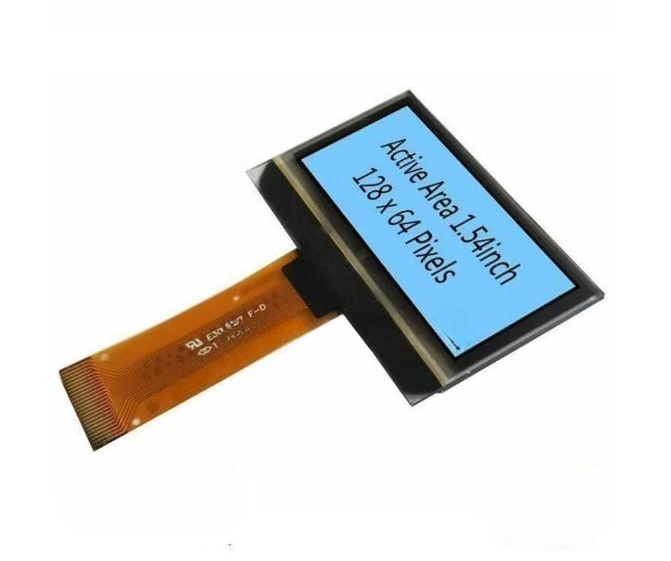

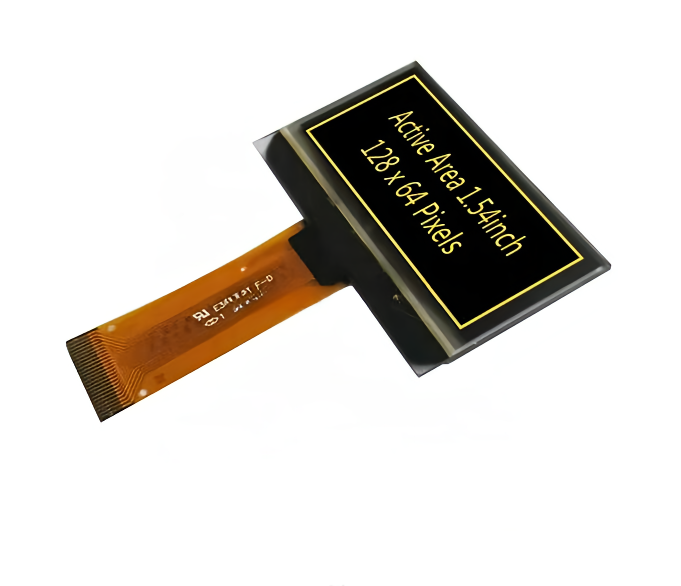

This 1.54 inch 128×64 resolution graphic OLED module presents bright blue graphics on a black background with high speed response times along with high contrast visibility from any angle. This self-illuminating module has I2C interface compatibility. It has a built-in SSD1309 controller, operates at 2.8V supply voltage and it’s RoHS compliant.
