DEB296152A-0266DA
FEATURES
- Type：Active Matrix
- Size: 2.66”Diagonal | 296×152 Pixels
- Display Color: Dualchrome (Black&White)
- Interface: SPI
- Driver IC: JD79661
- PDF DOWNLOAD
- Description
- Inquiry

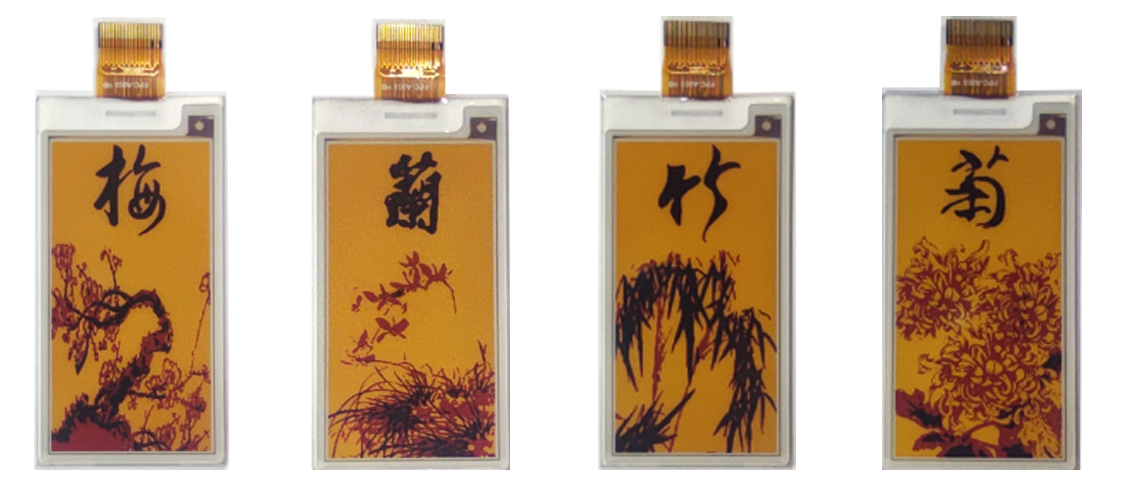

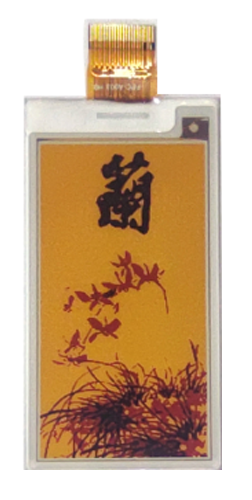

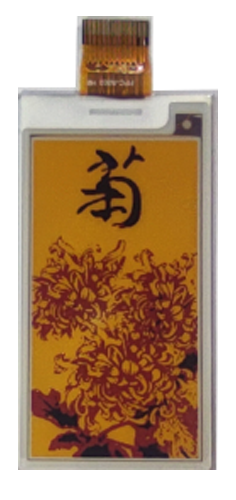

This 2.66 inch 296×152 resolution AM EPD module is capable to display images in black, white, red and yellow, with ultra wide viewing angle, high contrast and high reflectance. It has a built-in JD79661 controller, operates at 3.3V supply voltage, with ultra low power consumption and it’s RoHS compliant.
